Basically all the strength and authority of excavators rely on hydraulic and consequently, a selection of hydraulic oil has played the significant role in the efficiency and existence of this machine. The excavators do not require general-use product unlike most other construction-equipment because they require hydraulic oil which is to suit them. The nature of their systems is associated with constantly varying loading, intense pressure, and exposure to the environment that dictate unusual demands to the fluid.
Majority of operators assume that the excavator can be run with any construction grade hydraulic oil regardless of the requirements of excavator hydraulic systems that are strict and high duty cycle. The correct choice of hydraulic oil is essential to make sure that the excavator functions, is flexible and dependable during a sufficiently long period of time. The correct choice also enables efficient operation of pumps, valves, cylinders, and motors with ease and saves on wear and downtimes.
For more on suitable options when discussing hydraulic oil for excavators, refer to specialized resources in the field.
Why Excavator Hydraulic Systems Are Especially Demanding
Even most of the other machines that are utilized in construction or earthmoving cannot withstand difficult situations as the excavator hydraulic systems do.
Boom, arm, bucket and swing functions involve quick motions and uncountable stops and starts. This creates repeated cycling under various loads whereby there are typically shock pressures when digging or moving heavy material. The operating pressure is typically 300450 bar (and higher in modern machines) that is much greater than not-excited hydraulic systems like loaders or stationary industrial systems.
The outdoor settings also have their own challenges: dust and dirt enter in with breathers or seals, water enters at some point in the rains or condensation or temperature drastically changes due to mornings and hot afternoons. These bring on accelerating oxidation, accumulation in contamination and differences in viscosity in the event that such degree of severity occurs without having been designed to withstand such an extreme situation.
Approximately equal weighting of the influence of these great factors on the oil is given below:
| Operating Factor | Impact on Hydraulic Oil |
| Variable load | Strong anti-wear protection needed |
| Precision control | Stable viscosity and fast air release |
| Outdoor operation | Oxidation and contamination resistance |
In practice, I have discovered that machines are rendered useless or generic oils are unduly consumed when it comes to dealing with such cumulative forces.
Key Excavator Components Affected by Hydraulic Oil
Hydraulic oil life and hydrate directly depend on the lubrication and nature of the hydrocarbon used in hydraulic oil.
Pumps (in general axial piston or vane) form the pressure and flow of the system. Poor oil causes cavitation, scoring or abrasion of the sliding components. The fluid required in control valves must be stable and clean so that the tolerances are small and that there is neither stickiness nor slowness of reaction. High side loads are supported by cylinders which are regularly lubricated to ensure that they do not score the rods and barrels. Hydraulic motors (to swing and travel) are consistent in torque and are insensitive to excess heat and slip.
Concisely, the rationale behind the significance of oil quality to both is as follows:
| Component | Why Oil Quality Matters |
| Pump | Prevents wear and cavitation |
| Valves | Maintains control accuracy |
| Cylinders | Ensures smooth movement |
| Motors | Supports continuous torque output |
Oil contamination or improper additives leads to premature wear among these parts where slow controls, odd sounds, or even leakages all lead to a potential disaster multiplied at a very high rate in a job site.
Choosing the Right Viscosity Grade for Excavators
One of the most viable options under the selection of the excavator hydraulic system oil is the selection of the oil grade.
The ISO VG grades are fixed at 40 o C of kinematic viscosity and the option affects the pump operation, flow characteristics with the pump and strength of film between temperatures. Its viscosity will either be too low; will not lubricate satisfactorily in loaded condition, too high will result in slow velocities, will consume much energy, and it will not cold start well.
Most of current excavators (mid-size to large) are capable of operating with the ISO VG 46 in the regular basis. The flow would be higher in Climatic conditions that are colder or quick to start in ISO VG 32. This might be because of the heaviness and temperature necessitating the use of ISO VG 68 to protect against the elements.
The guideline should be viewed by way of its common application:
| ISO VG Grade | Typical Excavator Application |
| VG 32 | Cold climates or winter starts |
| VG 46 | Most standard excavator operations |
| VG 68 | High temperature or heavy-duty use |
Note that the first thing that has to be done is to cross verify the OEM manual of the machine even though various manufacturers indicate narrow ranges. Multi-grade or high VI oil may be useful where seasonal difference are large, but great attention to advice is necessary to get maximum performance.
Performance Properties Hydraulic Oil Must Have for Excavators
Besides viscosity, hydraulic oil is also needed in excavators with some performance characteristics so that it can fit in the real world.

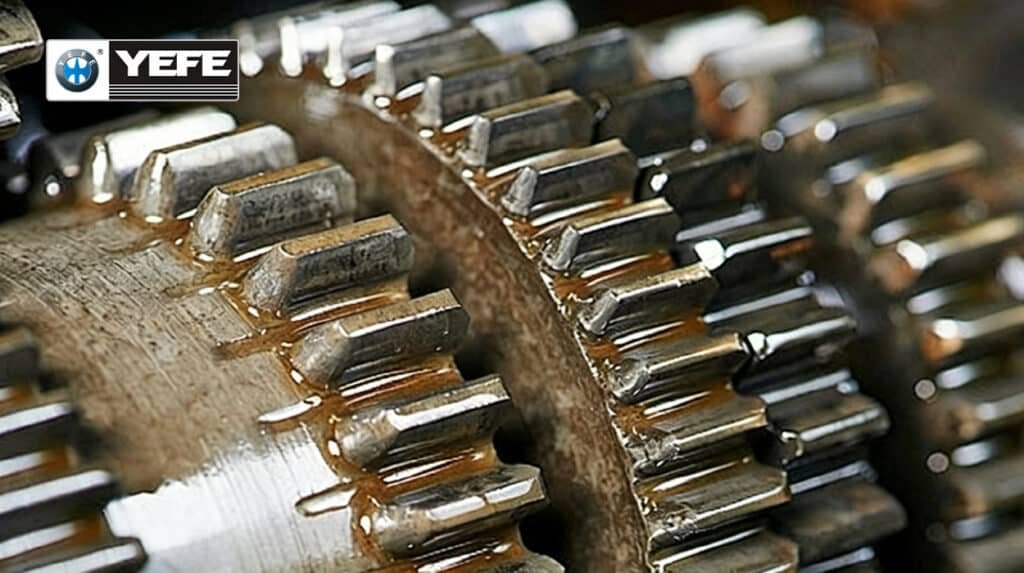

The surface of metal is coated with anti-wear additives especially where there is a high number of times the two metals need to come into contact with each other, which is evident in high-pressure pumps and valves. Thermal and oxidation stability prevent breakdown, sludges and viscosities that result due to long heat durations. The properties are also anti-foaming and quick air release features that ensure a consistent response property of air bubbles, that is, air bubbles enhance spongy controls or cavitation.
Critical Properties, and their object:
| Property | Importance for Excavators |
| Anti-wear | Protects pumps and valves |
| Thermal stability | Prevents oil breakdown |
| Air release | Ensures smooth control response |
Oil with standards of at least DIN 51524 Part 2 (HLP) and above usually satisfies these requirements. It has been experienced in the field that oils not highly oxidation resistant leads to the development of varnish in valves within a few-thousand hours only.
Why Correct Oil Selection Improves Excavator Reliability
The choice of the best hydraulic oil in the excavators would necessitate first-hand and first-degree outcomes in time and cost management.
It will contain pumps and valves that have the proper anti-wear and stability that will last longer and failure will not be experienced during peak working time. Fully controlled and predictable viscosity and efficient release of air make sure that the controls are right and convenient and the operators have discovered this alone at first sight: the dig is even smoother, the cycle rates are faster, and the best part is shorter work shifts. This is largely due to the fact that the oil can not degrade easily, hence it experiences extended longevity within the periods of maintenance that is, less fluid top up and replacement of filters.
All these benefits add up in strenuous duty anticipated working environments: less-idling, less-emergency turnarounds, and more high-average productivity on a fleet way.
Common Mistakes When Selecting Hydraulic Oil for Excavators
The reason the excavator machine hydraulic oil is chosen is because there are some problems that can be mitigated despite the experienced crews that were not careful about details in some cases.
The issues that I have come across the most frequently are the following ones:
- Oil used depending on the size of machines or their age, a small mini excavator may then need finer oil compared to a 30 ton machine but the same drum will be used on the entire fleet.
- Jumping the ambient temperature fluctuations – maintaining the grade the same grade throughout the year in places where the winter is cold and the summer hot will produce poor growth, or over-heating.
- Incompatibility may occur during the use of various formulations of hydraulic oil and it may foil or underperform and this is not only between mixing of various additive package or brands of hydraulic oil.
- Concentrating on low cost instead of specifications cheap generic oils lack robust anti wear and oxidation esterification hence, wear faster in the high pressure systems.
- Against the suggestion of OEMs(s) – the supposition of the all-hydraulic-oil-common-sense is abandoning testing on specific pressure, temperature, and material of components by the manufacturer.
These inhibit unnecessary running of systems.
Conclusion — Excavator Performance Depends on the Right Hydraulic Oil
The excavators require application specific hydraulic oil which will avail them with superior output of power, accuracy, dependability in strenuous situations. Information on system requirements, operating temperatures, loads, and oil properties will help in effective decision making because the equipment owners and maintenance personnel will be equipped with such information.
The right choice will reduce the wear on the delicate parts, allow to prevent the controls and extend the service life and due to all these it will be able to increase better productivity and reduce the risks in the long term. Constant observation and adherence to the rules which excavators are kept to the best each season.
