JASO MA vs MA2 vs MB: Motorcycle Oil Standards Explained

JASO MA and MA2 are specifically intended to be used on the motor cycles that have wet clutch systems in which oil lubricates the engine, gearbox and the clutch plates all at the same time. In comparison, JASO MB is intended to be used on motorcycles or scooters that lack wet clutches, or, in other words, those that have either an automatic transmission or a distinct lubrication system. These types are the key determinants of the oil in term of friction performance under clutch loading as a way of ensuring that the oil engages well, transmits power and lasts long.

There is a lot of misconception by many riders that the higher the letters, the better the overall quality is. The categories in fact are indicative of clutch compatibility, and not a performance hierarchy. An oil with a wrong JASO classification may cause the clutch slipping, uneven power supply, faster wear, or even worse fuel consumption- problems which directly result of the incorrect friction properties.

What Is JASO and Why Does It Matter?

The Japanese Automotive Standards Organization (JASO) establishes specifications that are specific to the motorcycles, especially in the four-stroke engines, whereby the same oil is used by the engine, transmission, and clutch.

The motorcycle oils have to balance other requirements unlike passenger cars where engine oil is typically concerned with engine protection and fuel economy (usually under API or ILSAC guidelines). The common oil bath ensures that additives that are too strong in reducing friction inevitably result in the wet clutch slipping, resulting in loss of power and heat. JASO standards handle this by ensuring that certain clutch friction testing is done to check compatibility.

Standard BodyFocus Area
APIEngine protection
ILSACFuel economy
JASOClutch compatibility and friction control

JASO T903 (the present governing standard, updated such as the 2023 version) guarantees that oils comply with motorcycle practice in the real world, eliminating frequent failures that occur when automotive oils are improperly used.

Understanding JASO MA and MA2

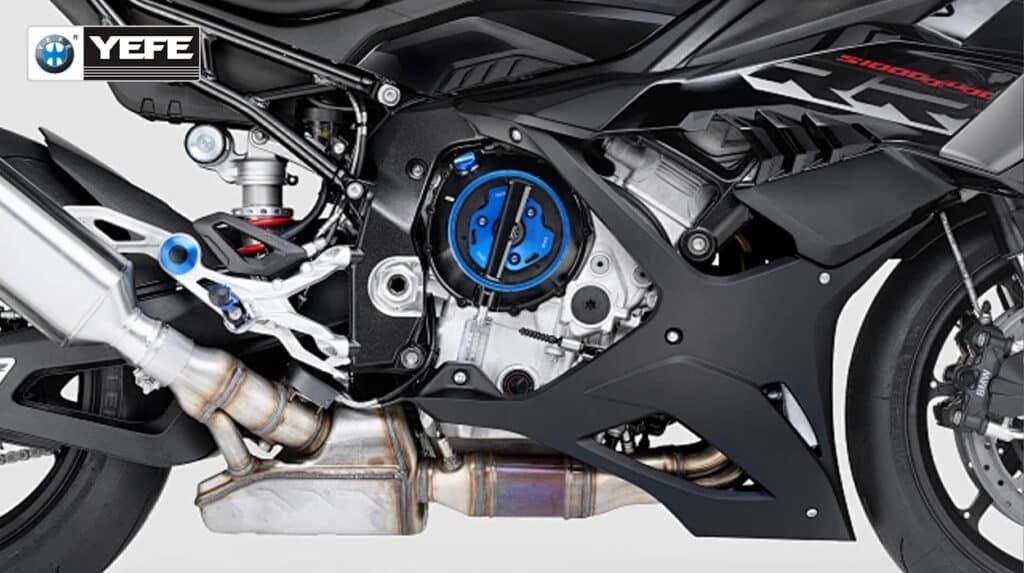

JASO MA and MA2 types are only applied to motorcycles that use wet clutch systems and the plates of the clutchs are immersed in the engine oil.

Both provide the required high-friction properties to allow no slipping during engagement and under load. The major difference is on the better control of friction performance in MA2 which gives better and more regular grip- especially in extreme circumstances.

The MA2 is not necessarily stronger or more successful in all situations, but it has more strict limits in the acceptable range of friction indexes, permitting optimal tuning of high-performance cases. Most high-torque and sport and adventure motorcycles today require or recommend MA2 due to its greater stability in aggressive riding or carrying heavy passengers or high temperatures.

ClassificationFriction RangeTypical Application
JASO MAStandard wet clutch performanceGeneral motorcycles, everyday use
JASO MA2Higher friction stabilityHigh-performance bikes, sport/touring

Manufacturers offering JASO-rated motorcycle oil products ensure compatibility with wet clutch systems and transmission stress, aligning formulations precisely with these friction requirements.

The older sources can call MA1 a sub-category with lower friction thresholds, although modern labeling tends to merge with MA or MA2 high performance.

What Is JASO MB and When Is It Used?

In friction without wet clutches, the low total friction is obtained by the use of friction modifiers in JASO MB oils to seek the goals of smooth operation and better fuel economy.

These equations are appropriate to scooters, mopeds or motorcycles with continuously variable transmission (CVT) or an automatic clutches, where the engine and the transmission might be not lubricated, or have no direct connection of the clutch to the engine oil. The less friction has the advantage of minimizing drag and enhancing economy; virtues that are not relevant or even harmful in wet-clutch applications.

Application of MB oil in a wet-clutch motorcycle would cause serious slippage, the modifiers in contact with the plates would disrupt the grip and this may contemplate overheating, glazing or premature failure.

FeatureJASO MA/MA2JASO MB
Wet clutch compatibleYesNo
Friction modifiersLimited / ControlledAllowed (higher levels)
Fuel efficiency focusModerateHigher
ApplicationManual clutch bikesScooters / CVT / automatic

How JASO Testing Works (Simplified Technical Explanation)

The performance of JASO friction is measured by bench test (on the basis of the SAE #2 Clutch Friction Tester or any analogue in T903 procedures) and it is simulated that the real clutch functions under controlled conditions.

The test is a measure of three main indices:

  • Dynamic Friction Index (DFI) — Measures the behavior of friction during the engagement of the clutch when the components remain in a slipping state and affects the perceived feel and smoothness as power is transferred.
  • Static Friction Index (SFI) – Tests the retention power of a clutch with its engagement fully made, and investigates the amount of torque it can exert before it slips.
  • Stop Time Index (STI) – This is used to measure the rate at which the system locks up by measuring the time it takes to release the clutch lever.

The reference fluids provide a standard performance and candidate oils are given indices based on the reference fluids. Increasing MA/MA2 ranges are associated with more robust and stable friction more appropriate to wet clutches;MB ranges are distinctly lower.

This testing mimics load, speed and temperature changes in the clutch, which gives engineers real numbers about the behaviour of the oil under operational stress much beyond what is having been assumed.

Common Misconceptions About JASO Classifications

There are numerous misconceptions about these standards, and they tend to result in the wrong choice of oil.

  • The MA 2 is the best always -Not always so. MA2 is required to have an additional tightening of friction which is best suited to the high-performance or high-duty applications but the regular MA would be suitable in most daily motorcycles. Unnecessary over-specifications may have an impact on shift feel or fuel economy.
  • MB is poor quality – MB oils are ideal in scooters and automatics and they provide better efficiency and smoothness in non-wet-clutch engines. The term low is not employed to mean lubricants in general but specifically friction.
  • Any engine that has passed the API test is good enough- API does not care about clutch friction, it only concerns itself with engine wear and oxidation. A typical automotive oil that is API rated would have oils that contain friction modifiers that cannot be used in wet clutches.
  • “Increased viscosity substitutes proper JASO rating Viscosity does not correct improperly adjusted friction modifiers or indices, it merely affects flow and film strength. Compatibility of clutches is controlled by formulation chemistry, rather than by thickness.

How to Choose the Correct JASO Standard for Your Motorcycle

The appropriate JASO classification is not chosen based on assumptions but mechanical reality.

The owner manual must always be consulted first as it clearly outlines the required JASO rating (usually MA or MA2 in case of manual transmission bikes, MB in case of scooters). Determine the type of clutch: wet multi-plate clutches should require MA/MA2; MB could be used in automatic or dry/sealed systems.

Take into account riding style and conditions- aggressive acceleration, towing or hot weather should be equipped with MA2 which works better with higher levels of friction stability. Never interchangeable, MA/MA2 oils may be used occasionally in MB application (they have no aggressive modifiers), but never vice versa.

Check with the service history of the bike or dealer suggestions in case of doubt. The objective still has to be reconciled between oil friction characteristics and clutch architecture to ensure consistent engagement, good power transmission, and service life.

Conclusion — JASO Classification Defines Clutch Compatibility, Not Marketing Rank

JASO MA, MA2 and MB standards are there to make sure that an oil formulation is appropriate to meet the particular needs of motorcycle drive chains. These classifications eliminate slippage, unreliable performance, and mechanical problems that generic oils bring by regulating the interaction of the lubricant with the clutch plates under working conditions.

The right specification, based on the specifications of the manufacturer and the design of the clutch of the bike, gives it good performance in diverse environment. Knowing these differences as an engineer would enable riders and technicians to keep systems accurately, leaving unavoidable issues in the behavior of friction.
